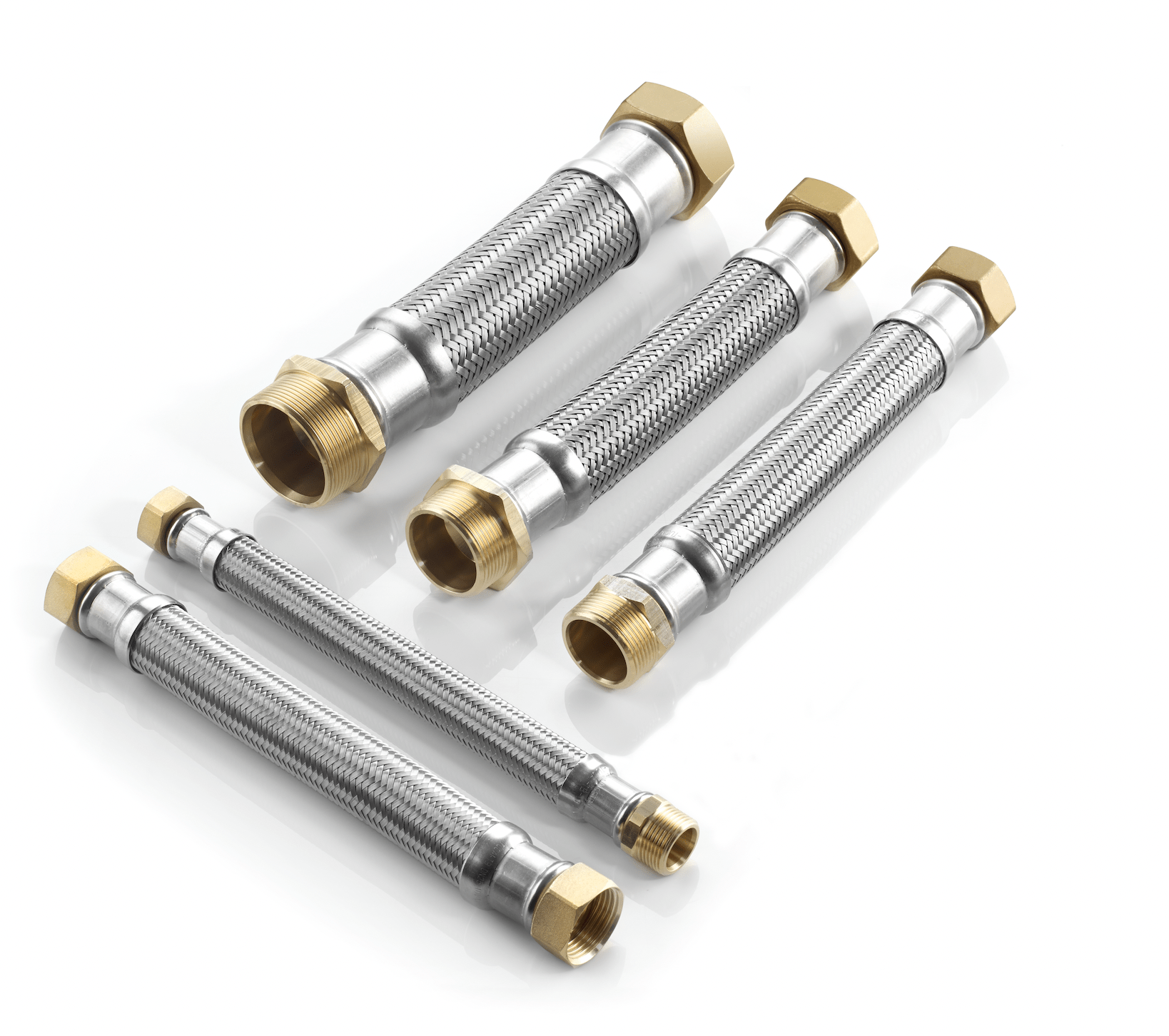

Extra Twist DN19-DN50

(DN19-DN50)

Features

DN: 19,26,32,40,50

Inliner: PE-RT

Outliner: Stainless

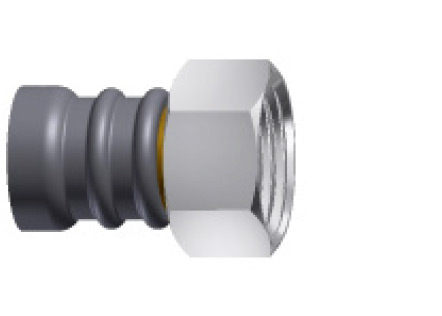

Nut G 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"

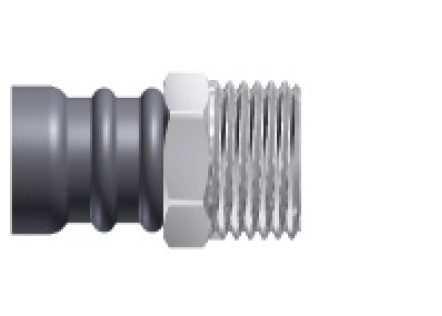

Male G 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"

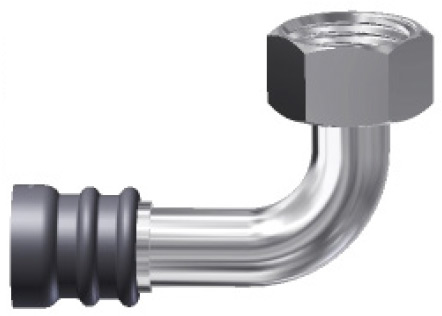

Elbows 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"

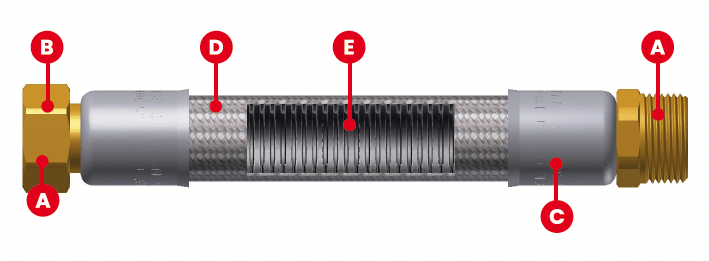

A	Brass CW617N
B	CSA320 fiber gaskets included
C	AISI 304 stainless steel
D	Stainless steel braiding AISI 304
E	PE-RT

Dimensions

DN	Outside diameter (mm)	Inside diameter (mm)	Pitch diameter (mm)	Nominal flow rate (l/min)	Bending radius (mm)	Operating pressure / Temperature (bar/°C)
19	25 mm	19 mm	15 mm	120 l/min @ 3 bar	35	Sanitary 16bar / 70ºC // Heating 12 bar - 90°C
26	32 mm	26 mm	20 mm	200 l/min @ 3 bar	45	Sanitary 16bar / 70ºC // Heating 12 bar - 90°C
32,5	40 mm	32.5 mm	27 mm	400 l/min @ 3 bar	60	Sanitary 16bar / 70ºC // Heating 12 bar - 90°C
36	44 mm	36 mm	30 mm	650 l/min @ 3 bar	70	Sanitary 16bar / 70ºC // Heating 12 bar - 90°C
48	55	48 mm	41 mm	1050 l/min @ 3 bar	100	Sanitary 16bar / 70ºC // Heater 12 bar - 90°CSanitary 16bar / 70ºC // Heater 12 bar - 90°C

If you have any questions or would like more information about this product, please do not hesitate to contact us.
