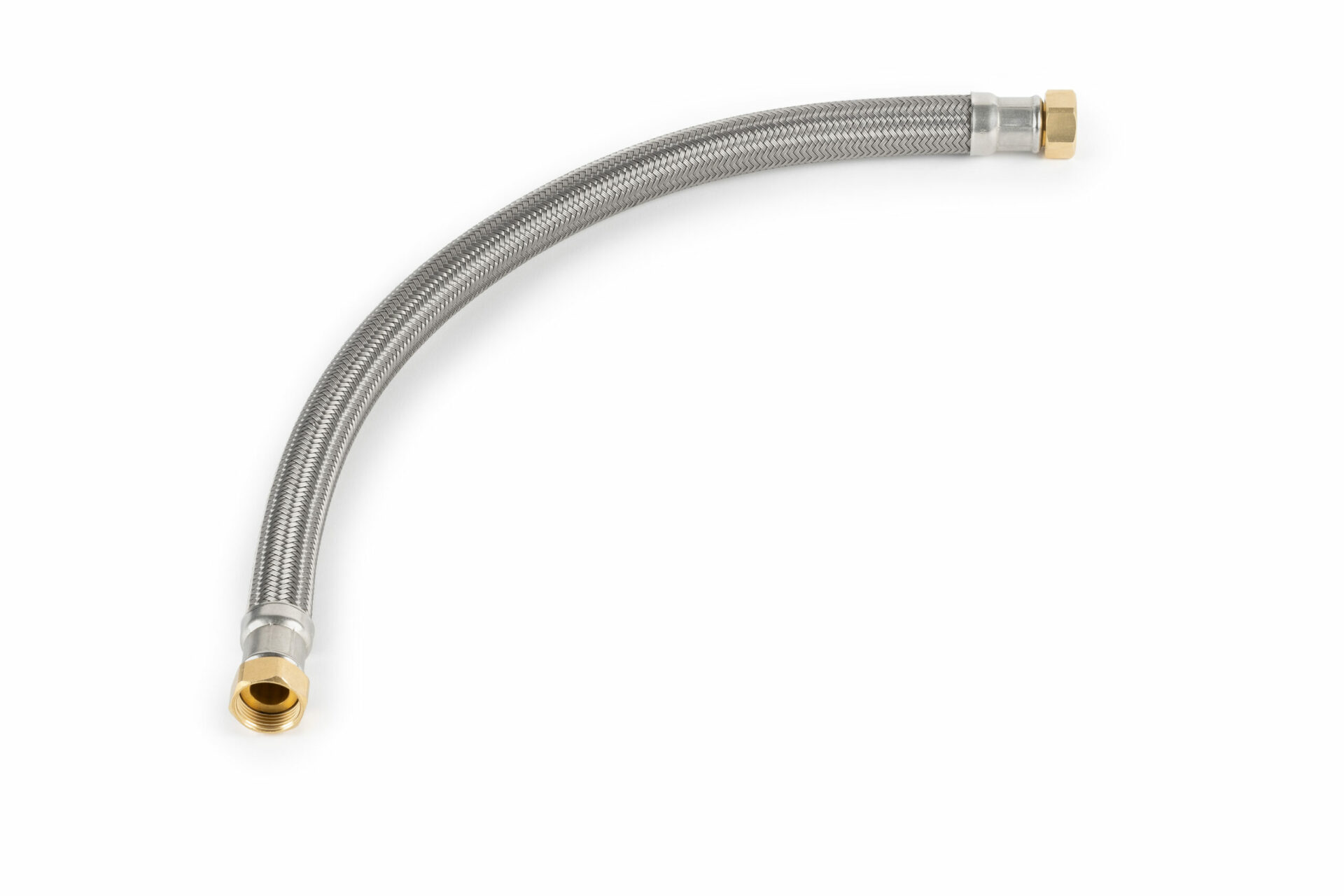

River TP DN19-DN25

Features

Flexible con trenzado exterior de acero galvanizado para conexión de grupos de presión y aplicaciones industriales
DN: 19 a 25
Inliner: EPDM
Outliner: Trenzado de vinilo anticorrosión

Fittings

H 3/4

M 3/4

H 1

M 1

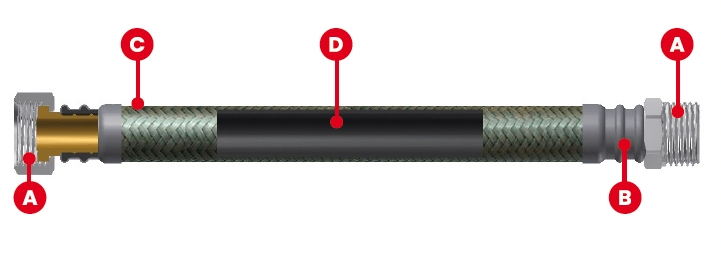

Materials

ALatón CW617N
BAcero inoxidable AISI 304
CTrenzado de vinilo anticorrosión
DEPDM

Dimensions

DNOutside diameter (mm)Inside diameter (mm)Pitch diameter (mm)Nominal flow rate (l/min)Bending radius (mm)Operating pressure / Temperature (bar/°C)
19271915,61207016 / 90
2532,5252120010016 / 90

Are you interested in this product?

If you have any questions or would like more information about this product, please do not hesitate to contact us.

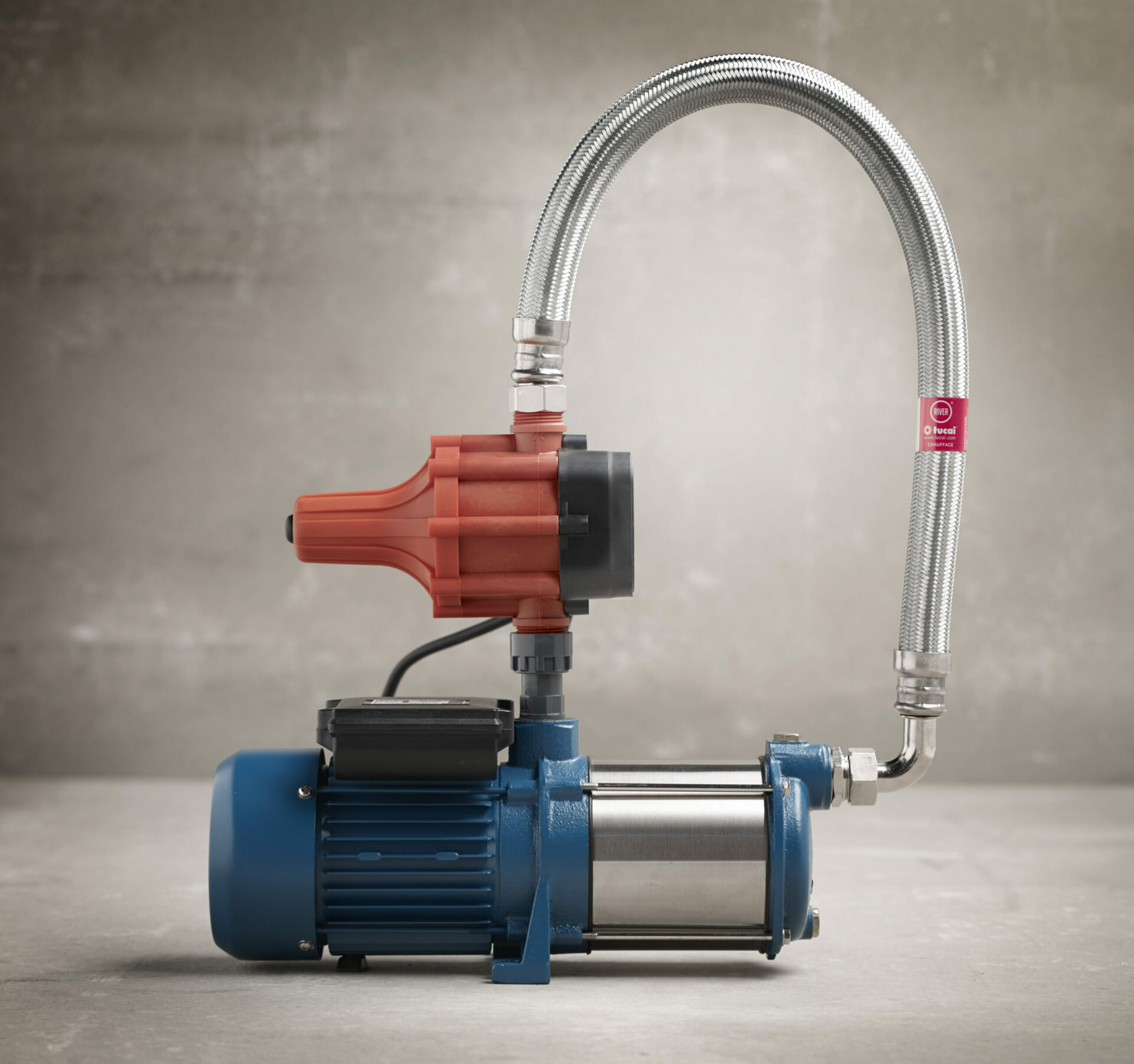

Applications
